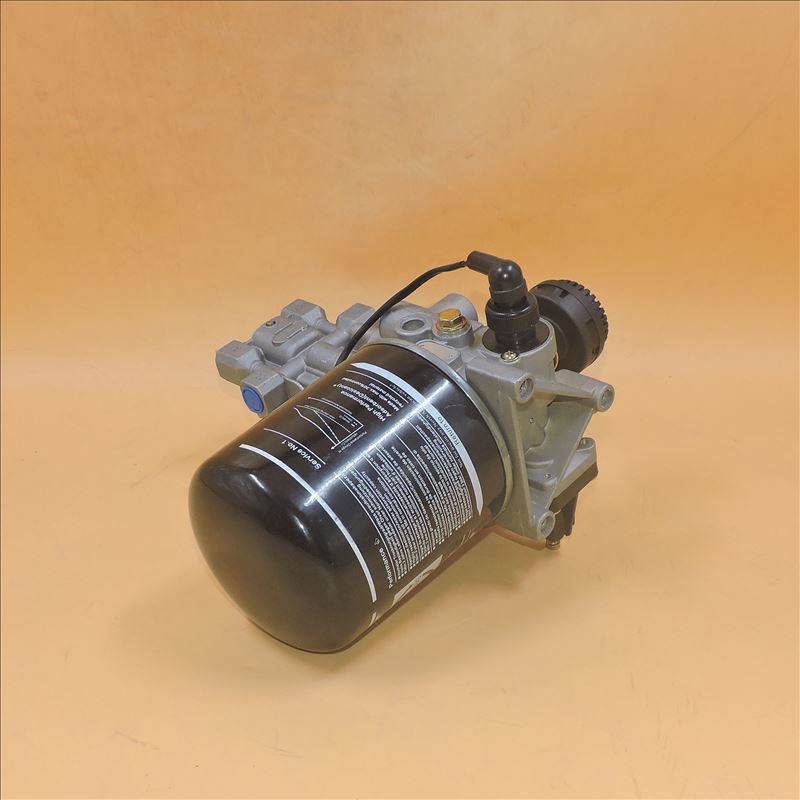

Midland Air Dryer Filter
Air Dryer 9325000470 Replace:Hyundai 595507C003 59550-7C003
How does an air dryer filter address oil carryover in the system?
An air dryer filter can effectively address oil carryover in a compressed air system through the use of coalescing filtration. Here's how it works:
1.Coalescing Filtration: Air dryer filters equipped with coalescing filtration utilize a specialized media that is designed to capture and remove oil aerosols from the compressed air stream. The coalescing filter media consists of fibers or layers that create a tortuous path for the air. As the oil aerosols pass through the filter, they come into contact with the fibers or layers, causing them to coalesce (merge) into larger droplets.
2.Droplet Capture: The coalesced oil droplets, having increased in size, become too large to remain airborne and are captured by the filter media. The media's structure is designed to provide high surface area and efficient oil droplet capture, preventing them from passing through the filter and into the downstream air system.
3.Drainage: Many air dryer filters include a built-in drain mechanism to remove captured oil from the filter. This drain can be automatic (with a float or timer) or manual. The drained oil is typically collected and disposed of separately, preventing it from re-entering the compressed air system.
4.Maintenance and Replacement: Regular maintenance and monitoring of the air dryer filter are essential to ensure its efficiency in addressing oil carryover. The filter should be inspected periodically, and if necessary, cleaned or replaced as recommended by the manufacturer or based on performance indicators such as pressure drop or oil breakthrough.
By incorporating coalescing filtration, the air dryer filter effectively captures and removes oil aerosols from the compressed air stream, significantly reducing oil carryover in the system. It helps maintain the integrity of downstream equipment and processes that require oil-free or oil-safe air, such as pneumatic tools, instrumentation, painting systems, and sensitive manufacturing processes.
It's important to note that the effectiveness of an air dryer filter in addressing oil carryover depends on factors such as the filter's design, filtration efficiency, flow rate, maintenance practices, and the concentration of oil in the compressed air system. Selection of the appropriate air dryer filter and regular maintenance are vital for optimal performance in preventing oil contamination.
