577-1438 337-0790 Engine Air Filter For Caterpillar 950L

Introduction

Structure of 577-1438 337-0790 Air Filter

The 577-1438 337-0790 air filter is comprised of a compact rectangular structure that includes both an intake and outlet section. The filter is primarily made out of durable materials, such as synthetic fibers, which are designed to capture and filter out dust, pollen, and other particles from the air. At the core of the filter lies a pleated filter media, which enhances the surface area available for filtration. The pleats are held together by a sturdy frame that secures them in place and prevents any potential deformation during use. In addition, the frame is designed to fit into a variety of air conditioning and/or heating systems, ensuring optimal air flow and ventilation throughout the room/home. All in all, the 577-1438 337-0790 air filter offers a highly effective and reliable air filtration solution that can withstand even the toughest environmental conditions.

Details

Part Number:577-1438 337-0790

Part Type:Engine Air Filter

Brand:Caterpillar

MOQ:20pcs

Original:Jiangxi,China

Certification:ISO9001,CE,ISO14001,OHSAS18001

Price:Negotiable

Payment term:TT,LC

Payment:T/T 30% as deposit,and 70% before delivery

Packaging Details:Carton

577-1438 Dimensions:

Length 484.2 mm (19.06 inch)

Width 190 mm (7.48 inch)

Height 370.4 mm (14.58 inch)

337-0790 Dimensions:

Outer Diameter 150.9 mm (5.94 inch)

Inner Diameter 108.5 mm (4.27 inch)

Length 434.6 mm (1.76 inch)

577-1438 OEM Equivalent Part Number:

Hifi SA16826

Donaldson P635773

Caterpillar 5771438

337-0790 OEM Equivalent Part Number:

Hifi SA16838

Donaldson P638606

Caterpillar 3370790

577-1438 337-0790 Apply Equipment:

Caterpillar

TRACK-TYPE TRACTOR

D6T LGP D6T LGPPAT D6T XL D6T XL PAT D6T XW D6T XW PAT D7E D7E LGP

PIPELAYER

PL72

WHEEL-TYPE LOADER

950 950K 950L 950 GC 950M 950M Z 962 962K 962L 962M 962M Z

ENGINE - INDUSTRIAL

C7.1

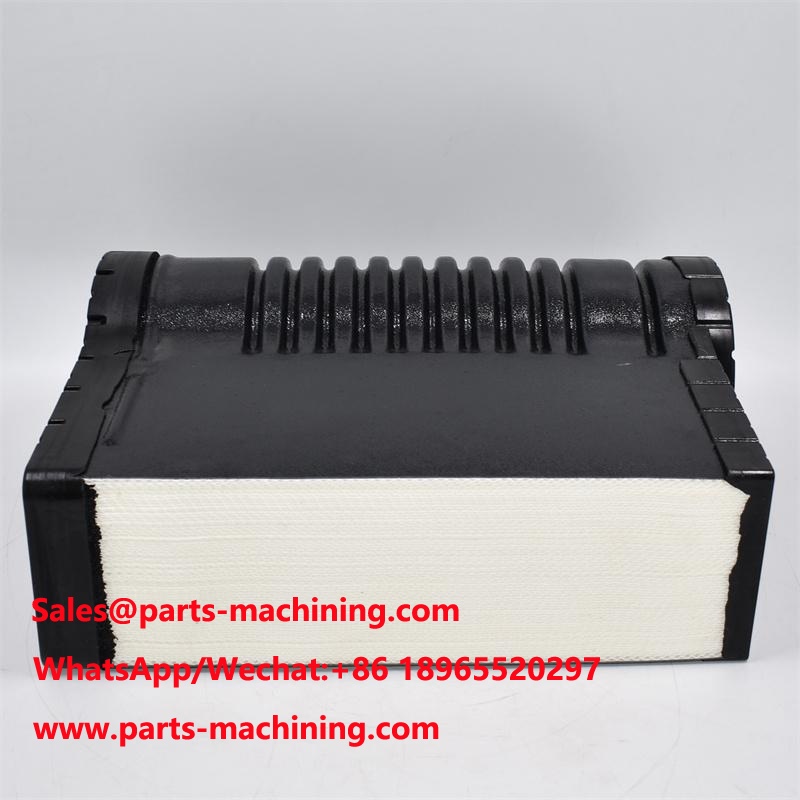

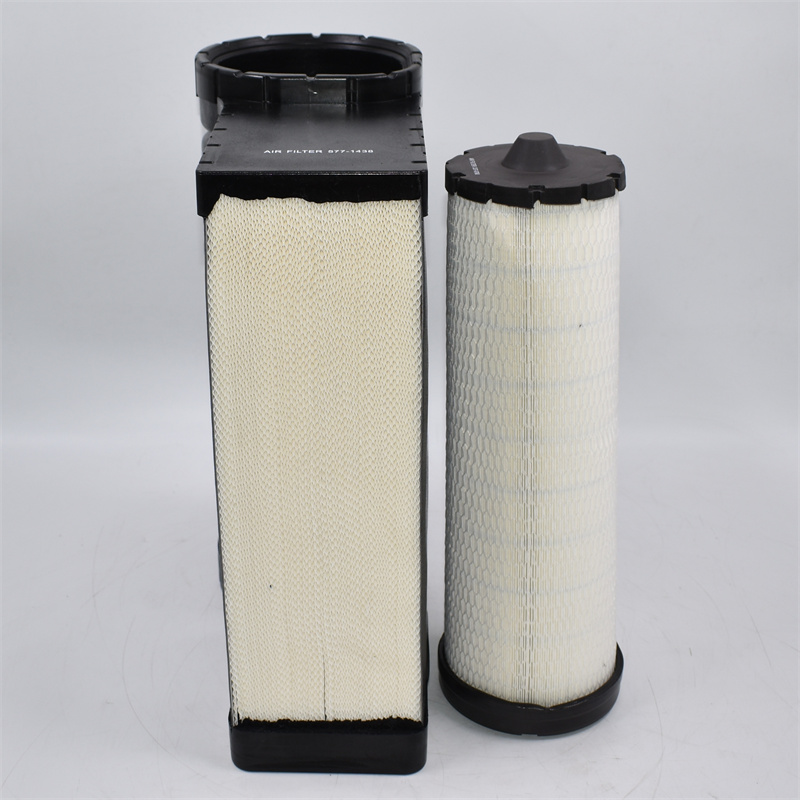

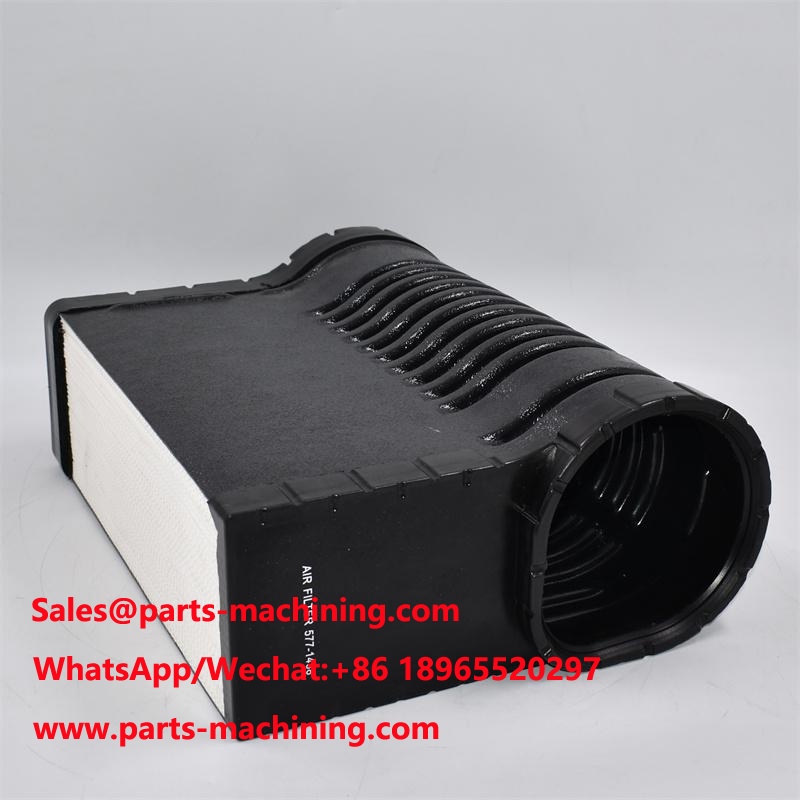

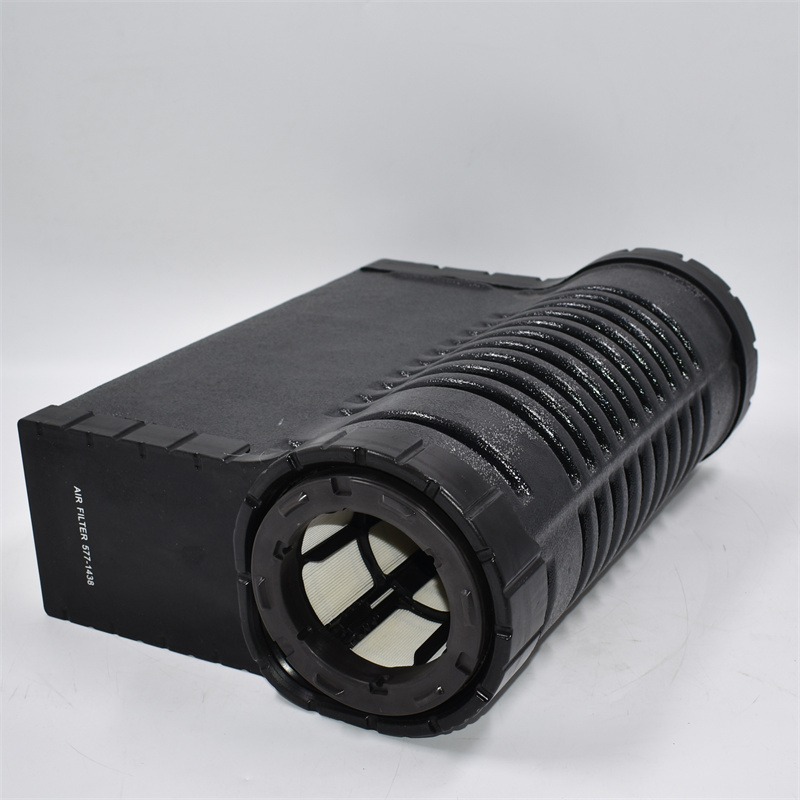

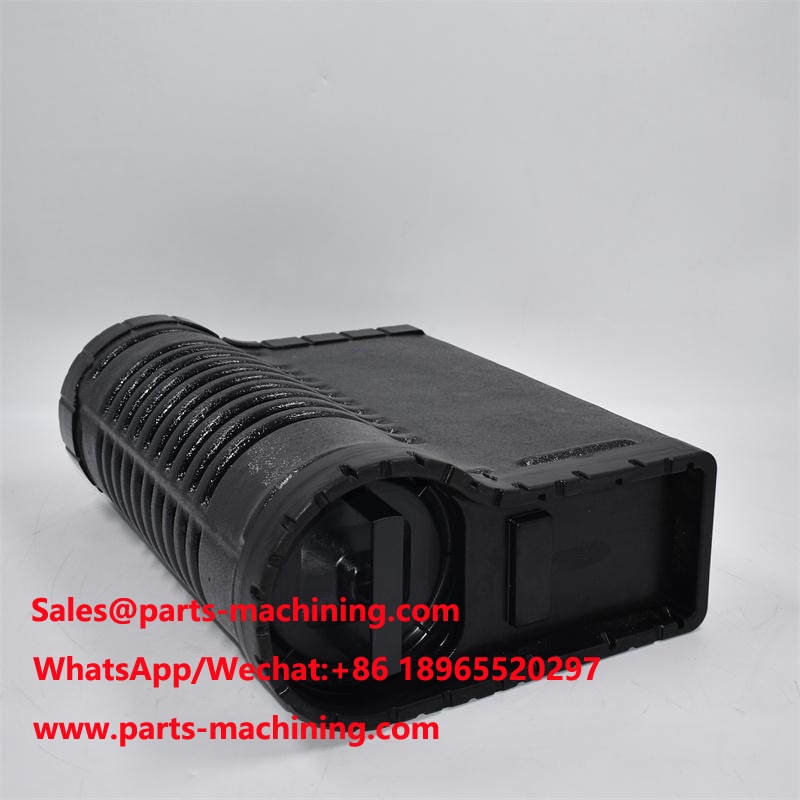

577-1438 337-0790 Picture show
